​​​​​​​​​​DX (MIL-DTL-26500 Type)

Request a Quote

​DX (MIL-DTL-26500 Type)

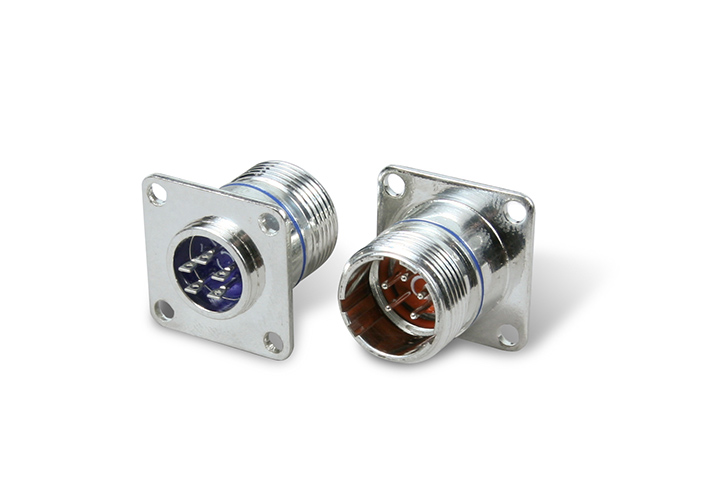

DX-SQUARE-THREADED

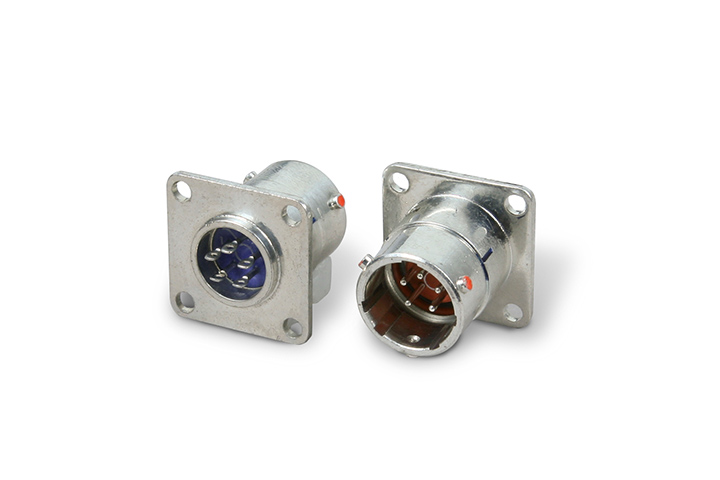

DX-SQUARE-BAYONET

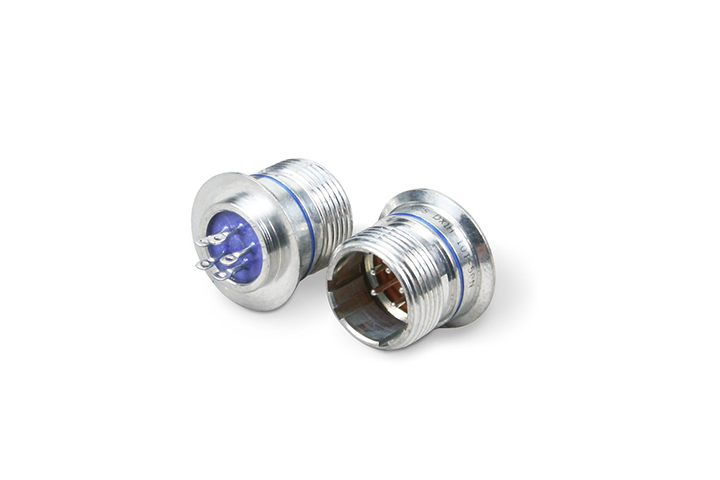

DX-SOLDER-THREADED

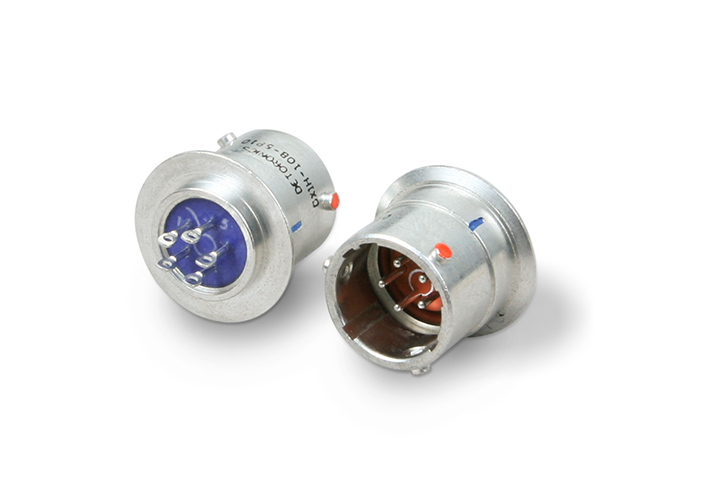

DX-SOLDER-BAYONET
​Selection

  • Shell Sizes ​10 through 1​6

  • ​Insert Arrangements Per MIL-STD-15​54

  • Standard Contact Termination - ​Eyelet

  • ​Other Termination Types Available – Please Consult Factory

  • ​Furnished with Engaging-Side Internal Silicone O-Ring and Interfacial-Seal

Finish

  • ​Fused Tin Plated Shell and Contacts

  • Other Finishes Available – Please Consult Factory

Technical Specification

  • ​MS 24264B - Square Flange Mount / Bayonet

  • MS 24264T - Square Flange Mount / Threaded

  • MS 27034B - Round Solder Mount / Bayonet

  • ​MS 27034T - Round Solder Mount / Threaded

pdf-download

​Technical Specifications
pdf-download

​Part Numbering Spec Sheet
  • Modifications available
  • ​​Guaranteed mateability
