​D​RH​ (MIL-DTL-24308 Type) D-SUB Connector

Request a Quote

​DRH (MIL-DTL-24308 Type) D-SUB Connector

DRH-15P
DRH-25P

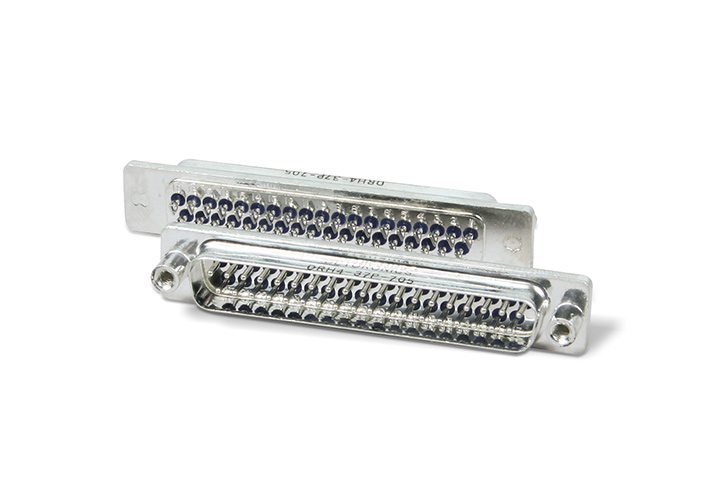

DRH-37P
DRH-9P
​Selection

  • ​Shell Sizes 1 through 5

  • ​Insert Arrangements Per MIL-STD

  • Available With Mounting Posts or Through Holes

  • Standard Contact Termination - Eyelet

  • Other Termination Types Available – Please Consult Factory

Finish

  • Fused Tin Plated Shell and Contacts

  • Other Finishes Available – Please Consult Factory

Technical Specification

  • MS 18272-1 (9 Pin)

  • MS 18272-2 (15 Pin)

  • MS 18272-3 (25 Pin)

  • MS 18272-4 (37 Pin)

  • MS 18272-5 (50 Pin) - Not Pictured

pdf-download

​Technical Specifications
pdf-download

​Panel Cut Out Specifications
  • Modifications available
  • ​​Guaranteed mateability
